Detail description
CPU：2.4GHz
Memory：1GB/2GB/4GB/8GB/16GB/32GB LPDDR4/LPDDR4X
Flash：4GB/8GB/16GB/32GB/64GB/128GB emmc
LCD：7/10 inch(MIPI/LVDS)
USB:USB2.0 USB3.0
OS：debain10, android 12, linux5.10 QT, Ubuntu
Support Customized development hardware and software

System parameter
CPU	RK3588s
Frequency	Quadrupole A55(2.4GHz)
RAM	LPDDR4/LPDDR4X
FLASH	4GB/8GB/16GB/32GB
Power IC	RK809 Support for dynamic frequency modulation
Interface parameter
LCD	DSI/LVDS/EDP/HDMI
Touch	Capacitive touch
audio	Supports direct output from headphone speakers and supports recording and playback of audio
SD card	SDIO*2
emmc	emmc
Process	8nm
WAN	Supports 2-way Gigabit Ethernet
USB HOST	HOST2.0*2 HOST3.0*2
OTG	OTG interface
UART	UART*10
PWM	PWM*16
IIC	IIC*6
SPI	SPI*4
ADC	ADC*2
Camera	CSI/BT601/BT656/BT1120/RAW
Electrical characteristics
3.3V input voltage	5V/2A
RTC input voltage	3V/0.6uA
Outpu voltage	3.3V/1.5A
Work temperature	-10°C~70°C
Storage temperature	-10°C~40°C

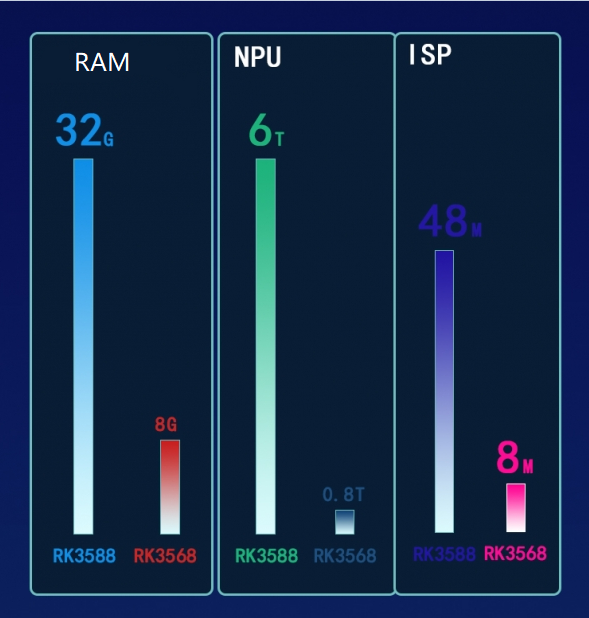

The rk3588s chip integrates all the functions of the rk3568s, enhances its computing power, the computing power reaches 6T, and has a neural network design. It is very suitable for AI processing, whether it is video or word processing, it performs very well. Covering the whole industry, a variety of design schemes, all-round expansion capabilities and modular design, supporting a variety of 2G/3G/4G/5G/modules, supporting a variety of operating systems android12, ubuntu18.04/20.04, QT, etc., can be applied to different Industrial design in the industry field requires effective shortening of product development and marketing cycles. It has been applied to edge computing artificial intelligence Address delivery in multi-industry fields such as UAV master control, vehicle terminal, audio and video processing, etc. Customized process: contact customer service --> determine demand --> technology docking evaluation development cycle and cost --> sign development contract --> design and development --> custom sample test --> sample top plate --> project acceptance delivery -- ->After-sales and technical support

Donwload:HLG-RK3588s.pdf
